分离①
Separating agent
分离②
Separating agent
预铣
Pre-milling
成型铣刀①
Forming milling cutter
成型铣刀②
Forming milling cutter
下倒角
Bottom chamfer
上胶炉①
Glue pot
上胶炉②
Glue pot
烤灯模块
Heat lamp
快速熔胶
Quick melt adhesive
压贴
Pressing
压膜组
Pressing
智能齐头齐尾
Intelligent with both thebeginningand theend aligned
粗修
Rough trimming
自动修边①
Automatic edge trimming
自动修边②
Automatic edge trimming
清洗
Cleaning
伺服抛光
Servo polishing

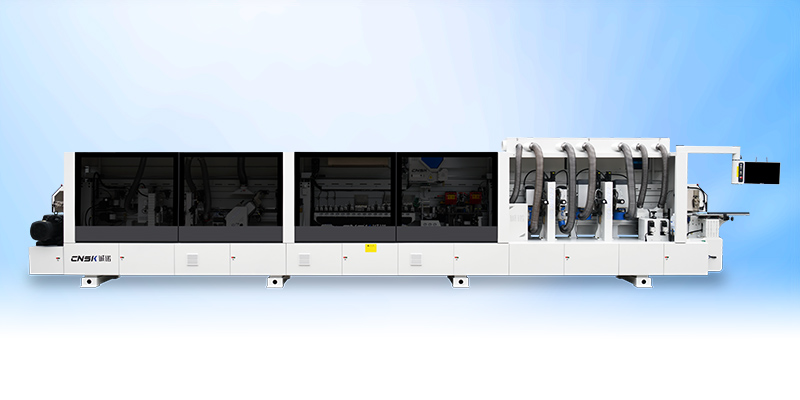

| 型号Model：FM759GJC | |||
| 电动升降Electric lift | 电动式 | 进给速度Feed rate | 8m/min |
| 板材宽度Sheet width | ≥120mm | 输入电压Input voltage | 380V |
| 板材厚度Sheet thickness | 18-25mm | 空气气压Air pressure | 0.7mpa |
| 封带厚度Sealing thickness | 0.5-0.7mm | 总功率Gross power | 52KW |
| 封带宽度Sealing width | 30-65mm | 机器尺寸(长*宽*高) Machine size (L * W * H) |
9985*1200*1850mm |
| 封边类型Edge type | 异型special-shaped | 机器重量Machine weight | 4600KG |
