分离
Separating agent
预铣
Pre-milling
成型铣刀①
Forming milling cutter
成型铣刀②
Forming milling cutter
上胶炉
Glue coating oven
边带刻槽
Grooving
烤灯
Heat Iamp
压贴
Pressing
智能压贴
Intelligent pressing
下修边
Lower trimming
修边
Trimming
齐头齐尾
Head to tail alignment
上跟踪
Upper tracking
刮边
scraping
平刮
Strickl
清洗
Cleaning
抛光
Polishing

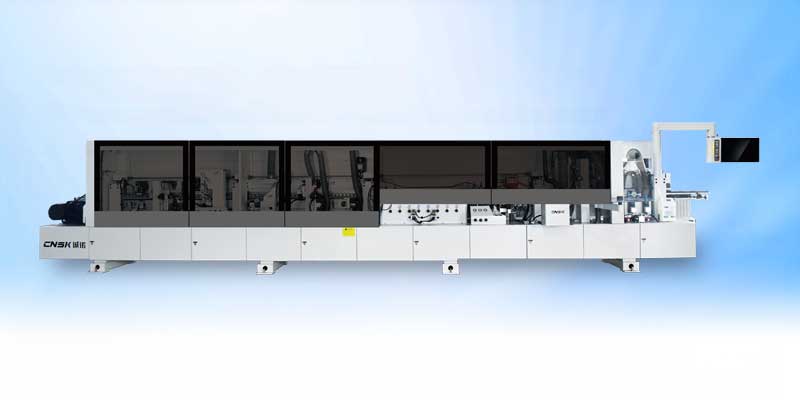

| 型号Model：FM716YC | |||
| 电动升降Electric lift | 电动式 | 进给速度Feed rate | 12m/min |
| 板材宽度Sheet width | ≥120mm | 输入电压Input voltage | 380V |
| 板材厚度Sheet thickness | 18-25mm | 空气气压Air pressure | 0.7mpa |
| 封带厚度Sealing thickness | 0.8-1.0mm | 总功率Gross power | 20KW |
| 封带宽度Sealing width | 30-65mm | 机器尺寸(长*宽*高) Machine size (L * W * H) |
8840*950*1850mm |
| 封边类型Edge type | 异型special-shaped | 机器重量Machine weight | 2600KG |
